GREMAKE Ice Bath Chiller by Climake: Engineered for Peak Performance

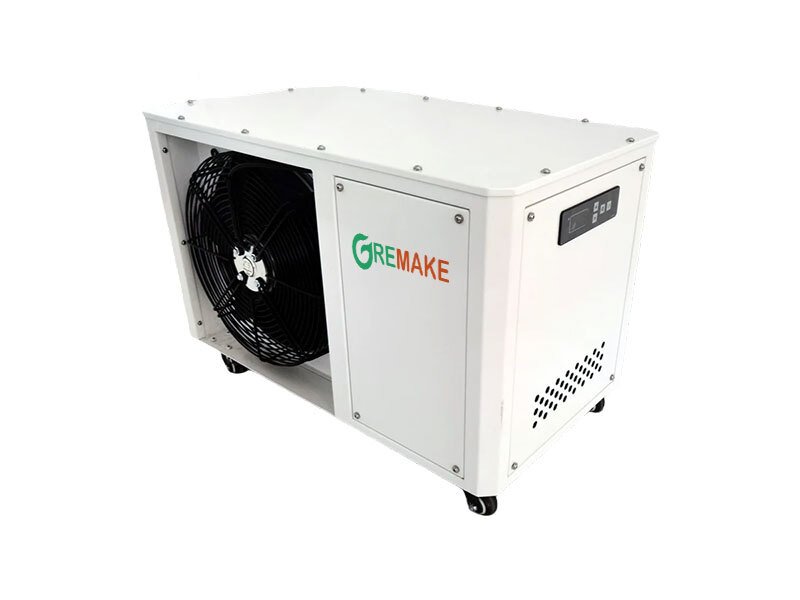

Discover the GREMAKE Ice Bath Chiller

The GREMAKE Ice Bath Chiller, a premium product from Climake, offers an advanced solution for maintaining precise, low temperatures in water immersion therapy. Designed to keep water consistently between 3 – 12°C, it surpasses traditional ice methods by ensuring uniform temperatures, enhancing convenience, and delivering significant long-term cost savings. This specialized instrument is ideal for therapeutic settings, sports recovery, and personal wellness, providing a reliable and precise tool for cold immersion.



Unmatched Features for Superior Performance

The GREMAKE Ice Bath Chiller is built with a suite of intelligent features to ensure reliability, ease of use, and optimal performance:

• Self-diagnosis: Automatically detects operational faults for quick troubleshooting.
• Silent Design: Operates quietly at 54 dB(A), perfect for tranquil environments.
• Automatic Protection: Safeguards vital components from abnormal conditions, extending lifespan.
• Timing Settings: Program 24-hour power schedules for energy efficiency.
• Intelligent Defrost: Prevents ice buildup, ensuring continuous heat exchange.
• Circuit Protection: Defends against overcurrent, overvoltage, and lightning strikes for enhanced safety.
• Precise Control: Maintains highly accurate temperatures within ±1%.
• Rotary Compressor: Ensures low vibration and quiet operation.



Engineered for T3 Temperature Conditions

The GREMAKE Ice Bath Chiller excels in demanding environments, specifically designed to perform under rigorous T3 Temperature Conditions. The IB05-ASKFXY model is engineered to operate effectively in ambient temperatures up to <53°C. Its rated cooling capacity is assessed at an ambient dry bulb (DB) temperature of 35°C, with water cooling from 25°C to 10°C. This robust design ensures consistent performance even in extremely hot climates.

The IB05-ASKFXY model demonstrates an Energy Efficiency Ratio (EER) of 3.0 W/W under these challenging T3 conditions, showcasing its ability to cool effectively without excessive energy consumption.



Model Specifications: GREMAKE IB05-ASKFXY

The IB05-ASKFXY model is optimized for T3 performance, offering powerful and efficient cooling.

Key Performance Metrics:

• Rated Cooling Capacity:0 kW
• Rated Input Power:67 kW
• EER:0 W/W
• Working Current: 9 A
• Water Outlet Temperature: 3°C

Design Features:

• Power Supply: 220 1N-60Hz
• IP Code: IPX4 (protection against splashing water) ¹
• Water Side Heat Exchanger: Titanium tube heat exchanger with PVC shell for superior corrosion resistance.
• Noise Level: 54 dB(A)
• Net Weight: 65 kg

Technical Data Sheet: GREMAKE IB05-ASKFXY



Characteristic	Unit	KFXY-005SAI
Ambient temp. range	°C	<53
Rated cooling capacity	kW	5.0
Rated input power	kW	1.67
EER	W/W	3.0
Max. working current	A	9
Power supply	/	220 1N-60Hz
IP code	/	IPX4
Refrigerant	/	R134A
Compressor QTY	No.	1
Min. water outlet temperature	°C	3
Water side heat exchanger type	/	Titanium tube heat exchanger + PVC shell
Air side heat exchanger type	/	Copper tube fin heat exchanger
Circulating waterpipe nozzle	inch	G1.5″Internal thread
Water flow	m³/h	2.1
Air out type	/	Horizontal
Fan QTY	No.	1
Noise	dB(A)	54
Packing Dimension (WDH)	mm	1000320620
N.W.	kg	65
Running weight	kg	70



Experience the GREMAKE Advantage

The GREMAKE Ice Bath Chiller by Climake, offers a durable, energy-efficient, and user-friendly solution for consistent cold water immersion therapy. Its robust design and advanced features ensure reliable performance even in the most demanding environments, providing exceptional value for your therapeutic needs.
